Vankais Fixed Installation LED Screen – Professional Display Solutions for Every Environment
Vankais Visual Technology Co., Ltd delivers high-performance fixed installation LED screens engineered for diverse applications. Whether you need a crystal-clear conference room LED display, a broadcast-ready studio video wall, or a high-impact outdoor LED billboard, our solutions provide seamless splicing, exceptional brightness, and 24/7 reliability tailored to indoor and outdoor environments.
Core Advantages
Versatile Applications – Optimized for indoor conference rooms, broadcast studios, and outdoor advertising
Seamless Splicing – Zero-gap design for unlimited screen sizes with perfect uniformity
High Brightness Range – 800-7000 nits adjustable for ambient light conditions
24/7 Durability – Industrial-grade components for continuous operation
Energy Efficient – Up to 30% lower power consumption than conventional displays
Seamless Splicing – Zero-gap design for unlimited screen sizes with perfect uniformity
High Brightness Range – 800-7000 nits adjustable for ambient light conditions
24/7 Durability – Industrial-grade components for continuous operation
Energy Efficient – Up to 30% lower power consumption than conventional displays
Product Features

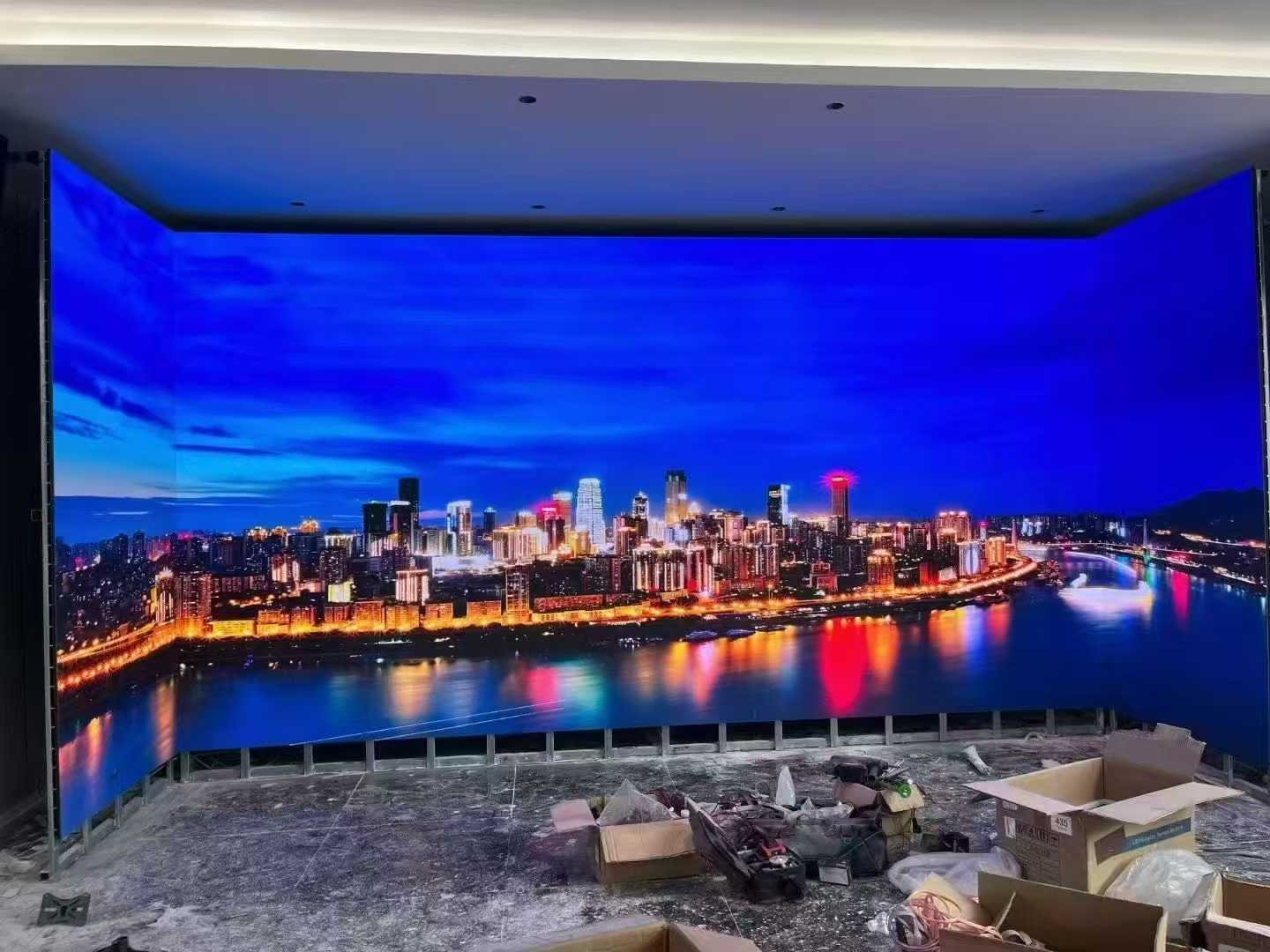

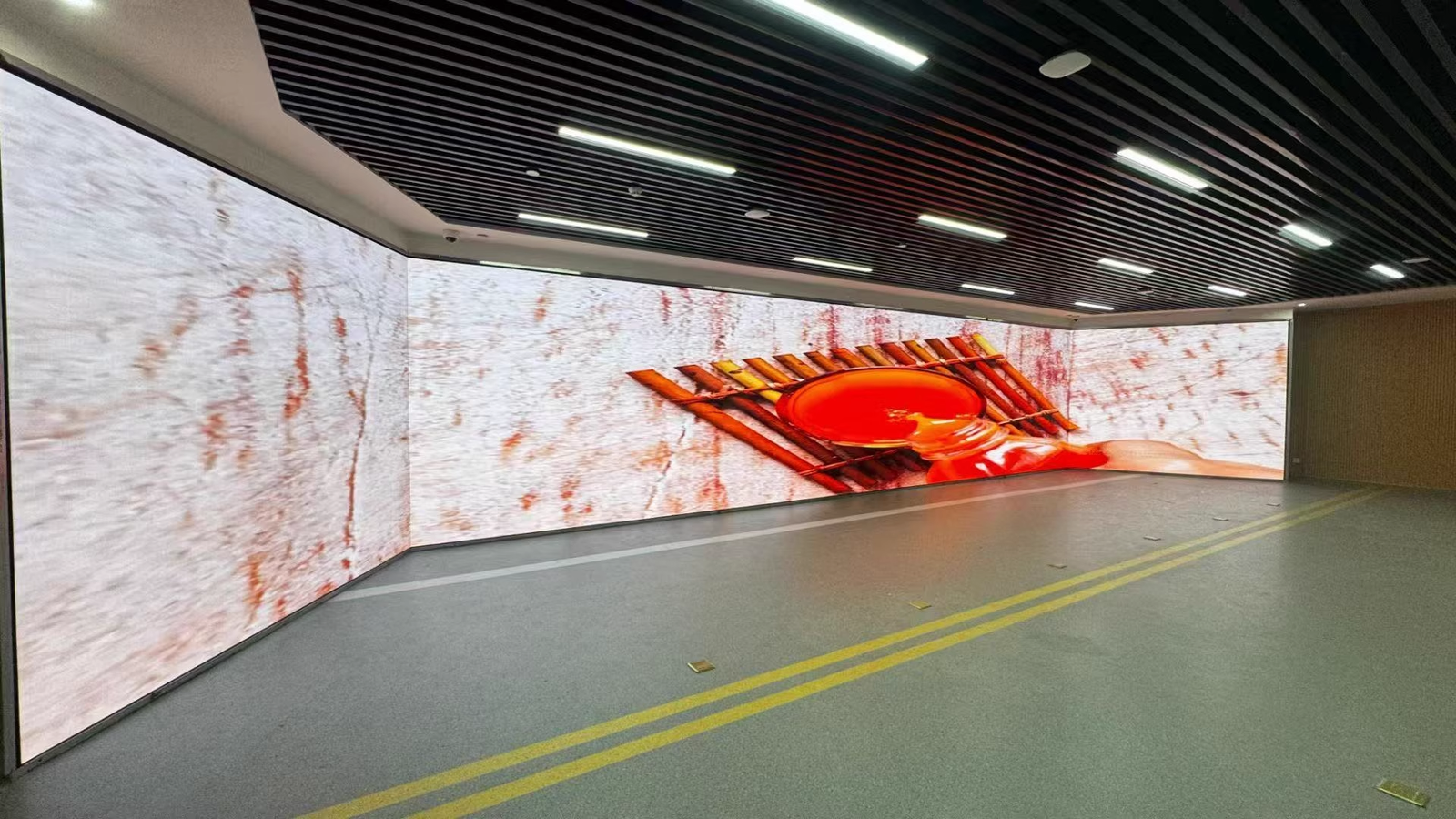

Indoor Fixed Installation LED Screens (Conference & Studio)

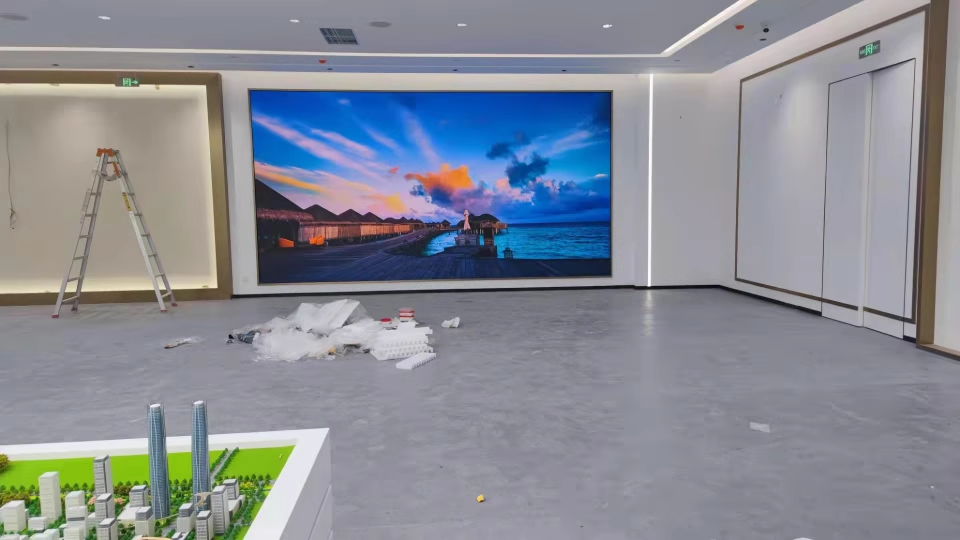

Conference Room LED Display
-
Fine Pixel Pitches: P1.5, P1.8, P2.0, P2.5 for close viewing (1-5 meters)
-
High Resolution: Crisp text, detailed graphs, and vivid video for presentations
-
Wide Viewing Angle: 160° horizontal/vertical for audience coverage
-
Front Maintenance: Tool-free module removal from the front; ideal for wall-mounted installations
-
Low Blue Light: Certified eye-friendly for long meetings
-
Wireless Control: Screen mirroring from laptops, tablets, phones via Wi-Fi 6
Broadcast Studio LED Wall
-
Ultra-High Refresh: 3840Hz-7680Hz to eliminate flicker on camera
-
Broadcast Color: Calibrated to Rec.709/DCi-P3 standards for accurate skin tones
-
14-Bit Color Depth: Smooth gradients without banding
-
Curved Installation: ±10° concave/convex for creative studio designs
-
Silent Operation: Fanless design with passive cooling (<20dB)
-
HDR Support: Enhanced dynamic range for cinematic production quality
Outdoor Fixed Installation LED Billboards

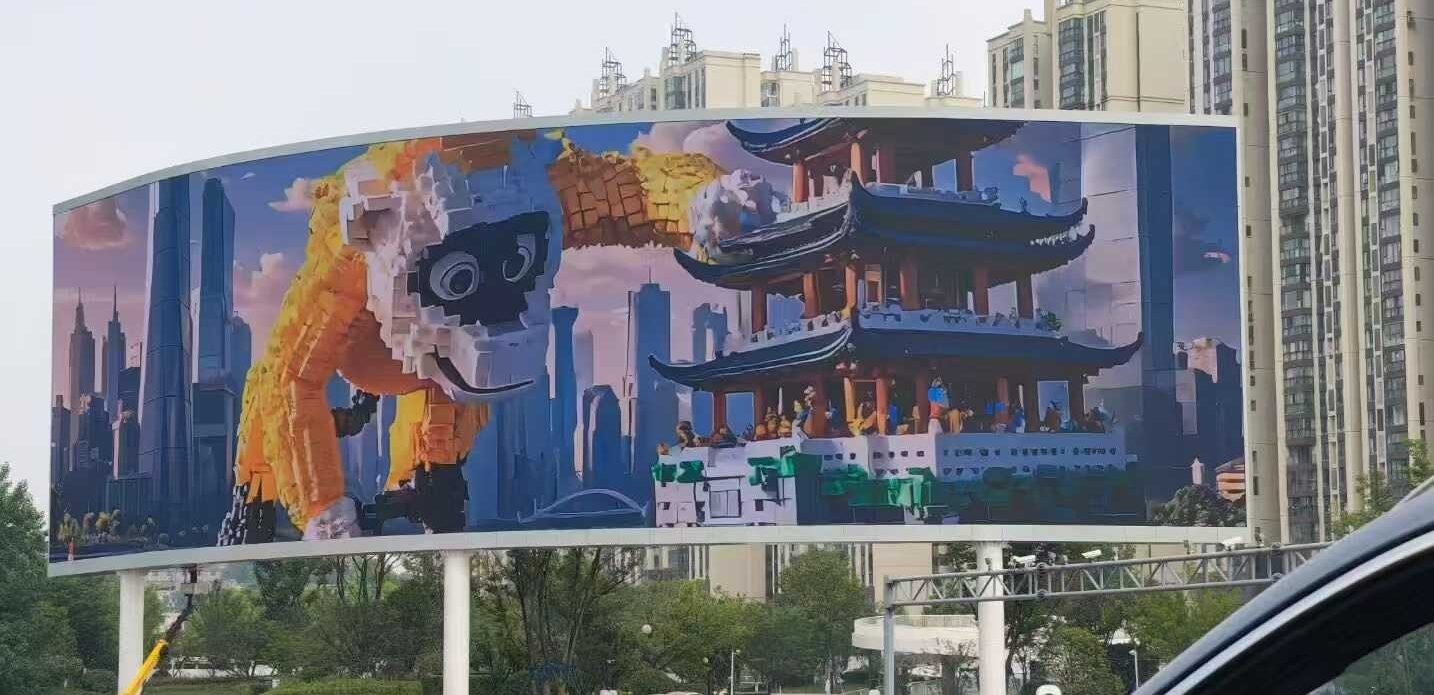

High-Brightness LED Billboard
-
Sunlight Readable: 5,000-8,000 nits for clear visibility in direct sun
-
Auto Brightness: Built-in light sensors adjust from day to night automatically
-
IP65/IP66 Rating: Fully sealed against rain, dust, and salt spray
-
Wide Temperature Range: -20°C to +60°C operation with industrial power supplies
-
Anti-UV Protection: Lamp surface coating prevents yellowing and brightness decay
-
Energy Saving: Automatic dimming reduces power to 150W/m² at night
Rugged Construction
-
Corrosion-Resistant: Aluminum cabinets with outdoor powder coating
-
Wind Load Rated: Reinforced frames tested to 150km/h wind speeds
-
Lightning Protection: Integrated surge protection and grounding system
-
Remote Monitoring: Cloud-based CMS for content, health checks, and diagnostics
-
Long Lifespan: >100,000 hours with <5% brightness degradation over 5 years
Universal Features (Indoor & Outdoor)
Control System Compatibility
Works with Novastar, Linsn, Colorlight, and HDPlayer control systems. Supports asynchronous playback, synchronous signal input (HDMI/DVI), and cloud-based management.
Works with Novastar, Linsn, Colorlight, and HDPlayer control systems. Supports asynchronous playback, synchronous signal input (HDMI/DVI), and cloud-based management.
Seamless Design
Precision-machined cabinets ensure <0.1mm gap between panels. The result is a true zero-seam video wall without visible lines or color shifts.
Precision-machined cabinets ensure <0.1mm gap between panels. The result is a true zero-seam video wall without visible lines or color shifts.
Smart Calibration
Factory-calibrated for brightness and color uniformity. On-site calibration tools maintain consistency across the entire LED display lifecycle.
Factory-calibrated for brightness and color uniformity. On-site calibration tools maintain consistency across the entire LED display lifecycle.
| Parameter | Indoor (Conference/Studio) | Outdoor (Billboard) |
|---|---|---|
| Pixel Pitches | P1.5, P1.8, P2.0, P2.5 | P4, P5, P6, P8, P10 |
| Brightness | 800-1,200 nits | 5,000-8,000 nits |
| Refresh Rate | 3,840Hz-7,680Hz | 1,920Hz-3,840Hz |
| IP Rating | IP30/IP45 | IP65/IP66 |
| Viewing Distance | 1.5m-10m | 5m-50m+ |
| Cabinet Size | 480×480mm, 640×480mm | 960×960mm, 1280×960mm |
| Weight | 7-9 kg/panel | 35-45 kg/panel |
| Power Consumption | 200-400W/m² | 400-800W/m² |
| Operating Temp | -10°C to +40°C | -20°C to +60°C |
| Lifespan | >100,000 hours | >100,000 hours |
| Warranty | 2 years | 2 years |
Applications

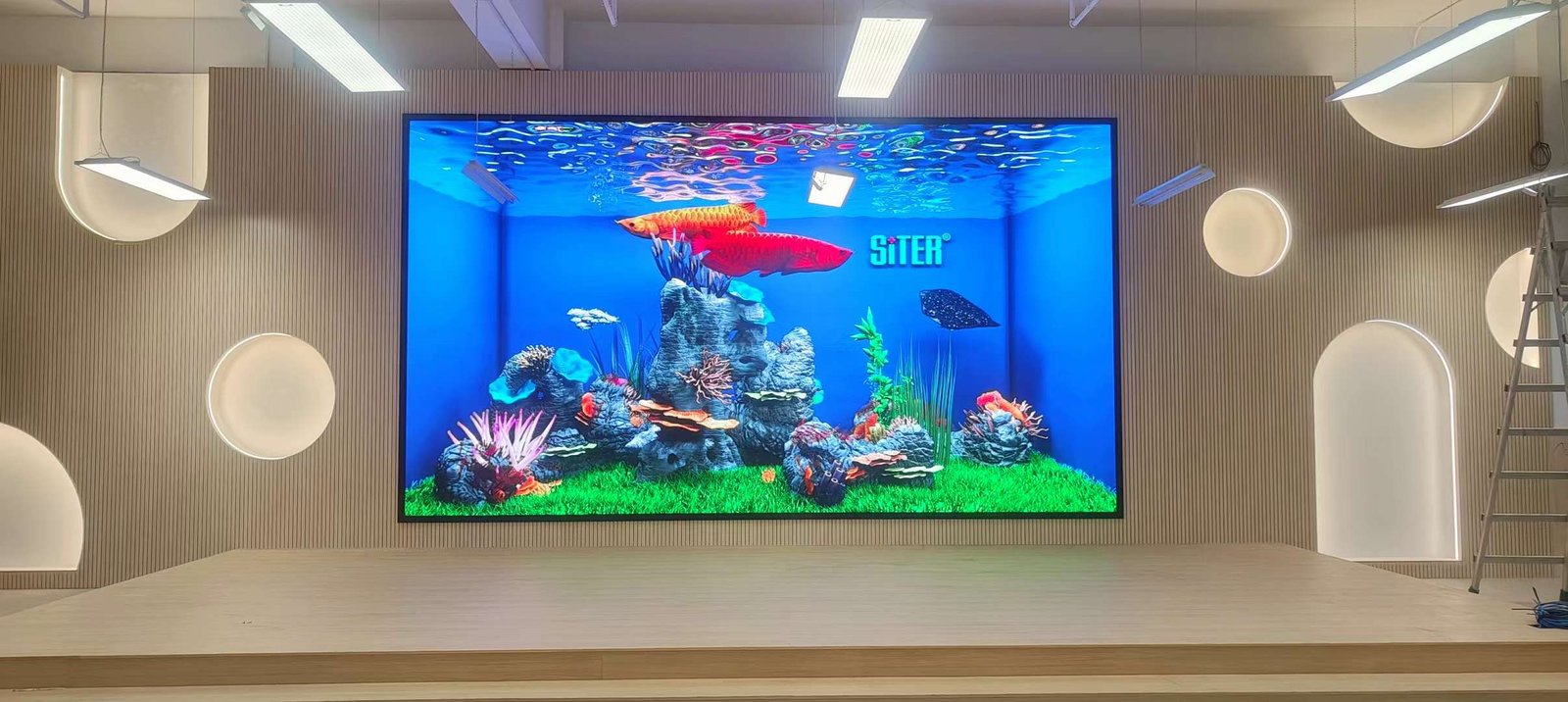

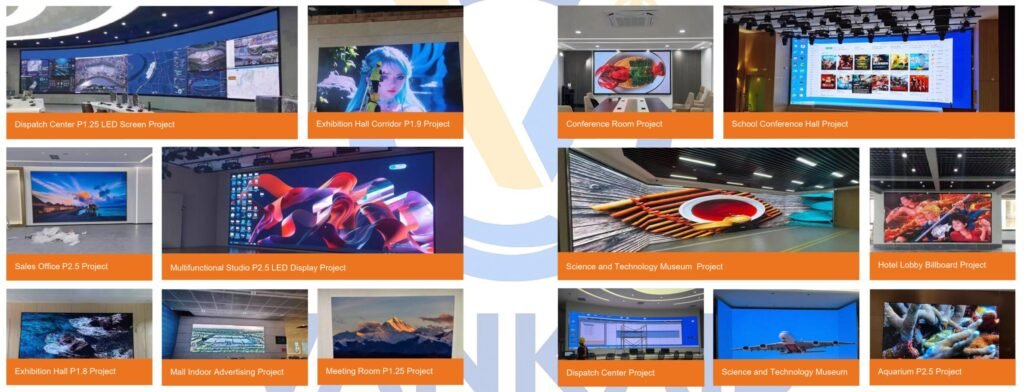

Indoor Fixed LED Screens
🏢 Conference Rooms – Board meetings, presentations, video conferencing
🎬 Broadcast Studios – News sets, virtual production, talk shows

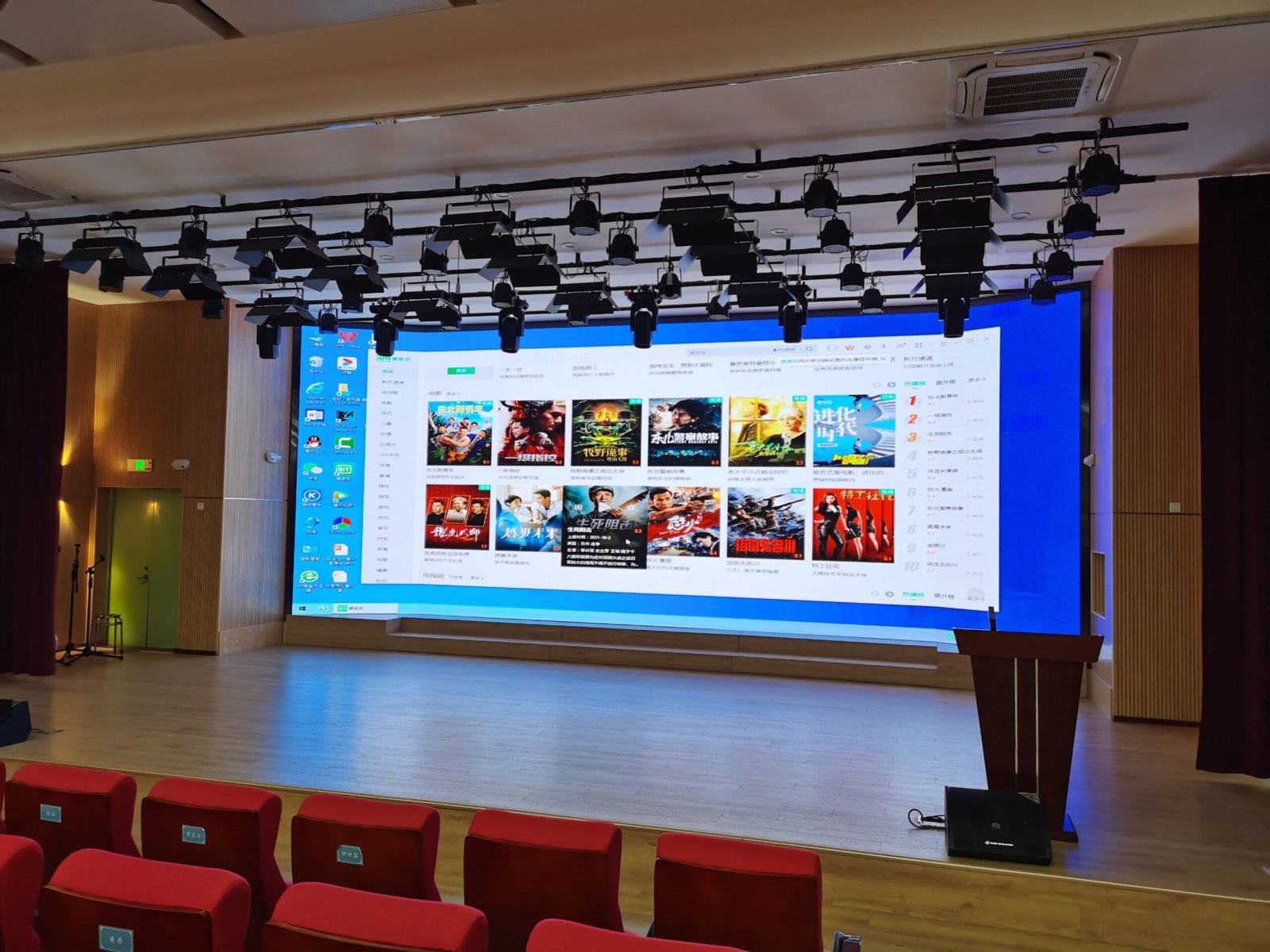

🎓 Auditoriums – University lectures, corporate training, AGM meetings
🏪 Control Rooms – Security monitoring, traffic management, industrial control
🛍️ Retail Showrooms – Brand displays, product showcases, digital signage
🏢 Conference Rooms – Board meetings, presentations, video conferencing
🎬 Broadcast Studios – News sets, virtual production, talk shows
🎓 Auditoriums – University lectures, corporate training, AGM meetings
🏪 Control Rooms – Security monitoring, traffic management, industrial control
🛍️ Retail Showrooms – Brand displays, product showcases, digital signage

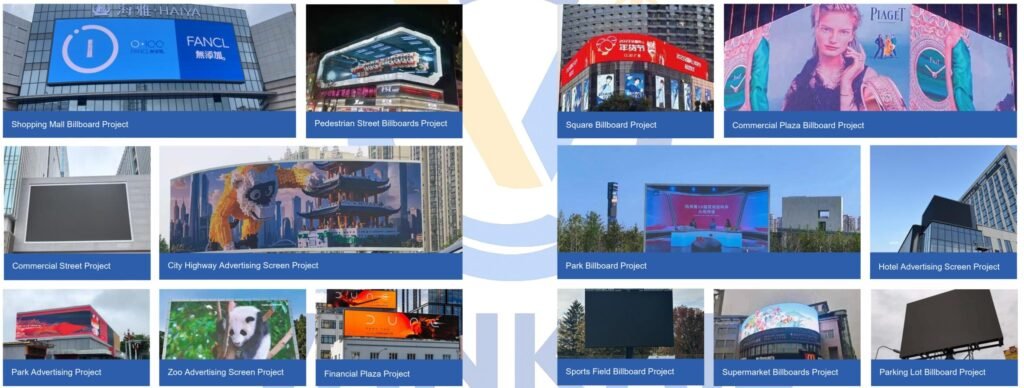

Outdoor Fixed LED Billboards
🌆 Building Facades – Corporate branding, architectural media walls
🛣️ Highway Billboards – Advertisements, public announcements
🏟️ Sports Stadiums – Scoreboards, sponsor advertising, replays
🏬 Shopping Centers – Outdoor promotions, store directories
🚉 Transport Hubs – Airport/railway station information, ads
🌆 Building Facades – Corporate branding, architectural media walls
🛣️ Highway Billboards – Advertisements, public announcements
🏟️ Sports Stadiums – Scoreboards, sponsor advertising, replays
🏬 Shopping Centers – Outdoor promotions, store directories
🚉 Transport Hubs – Airport/railway station information, ads
